Stainless Steel Bag Filter Housing with Magnetic Rods for Magnetic Particle Filtration

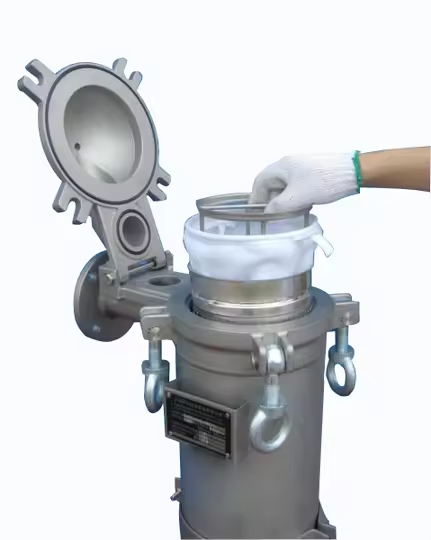

In industrial filtration systems, the stainless steel single and multi bag filter housing is a widely used solution for removing solid contaminants from liquids or gases. These filters are especially popular due to their ease of use, cost-effectiveness, and efficient filtration performance. To enhance the effectiveness of a standard bag filter, especially in environments where metallic particles are present, magnetic rods are often added to the filter housing.

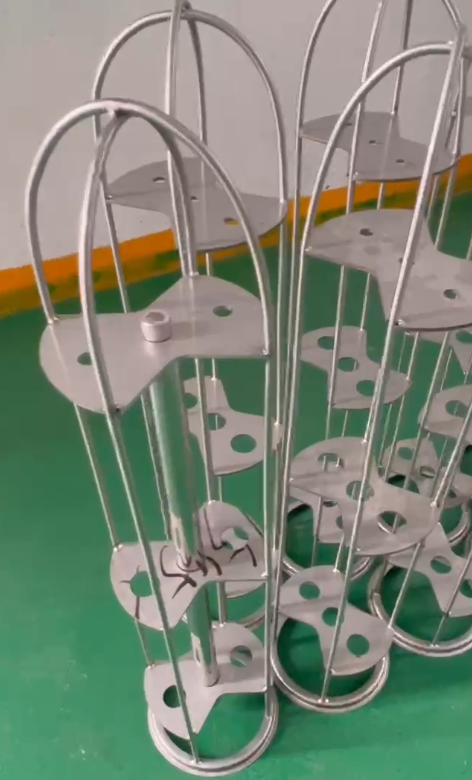

A bag filter with magnetic rods combines two types of filtration: mechanical filtration through the filter bag and magnetic separation through the magnetic rods. These rods are typically made of high-strength rare earth magnets and are placed either inside or alongside the filter bag. As the fluid passes through the bag filter, the stainless steel filter housing magnetic rods attract and capture any ferrous or magnetic particles suspended in the fluid.

Key Benefits:

1. Enhanced Filtration Efficiency
   The addition of magnetic rods helps remove fine iron and steel particles that a traditional filter bag might miss. This dual-action filtration significantly improves the purity of the fluid.

2. Protection of Equipment
   Capturing metallic debris helps protect downstream equipment such as pumps, valves, and heat exchangers from damage caused by abrasive or conductive particles.

3. Extended Filter Bag Life
   Stainless steel bag filter By removing magnetic contaminants early in the process, the magnetic rods reduce the load on the filter bag, allowing it to last longer before requiring replacement.

4. Easy Maintenance
   SS bag filter housings Magnetic rods can be easily removed and cleaned, making them reusable and contributing to lower operational costs.

Applications:

• Metalworking fluids

• Chemical processing

• Oil and gas industries

• Cooling water systems

• Food and beverage processing (when constructed with food-grade materials)

In conclusion, SS Bag Filter Housings #2 #4 304/316  the integration of magnetic rods in a bag filter system is a simple yet highly effective method to enhance filtration performance. It is especially beneficial in any process where metallic contaminants are a concern. This combination not only improves product quality but also helps extend the life of both the filter and downstream equipment.
